Technical Data
Enlarge your power,smooth your drive,pleasure your travel.
make your drive more Powerful and free of trouble.

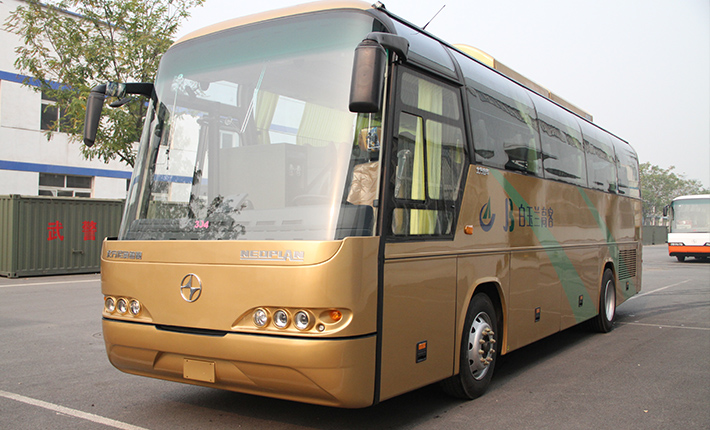

Model | BFC 6100A |
General Data | |
Dimension | 10200*2500*3450 |
Kerb Weight (kg) | 10170kg |
Gross Vehicle Weight (kg) | 13840kg |

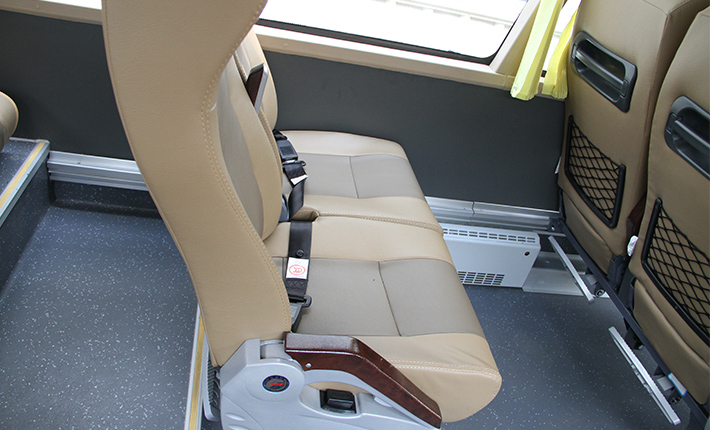

Seat Capacity | 24-43+1+1 |
Fuel Tank Capacity (L) | 300L |
Driveline system | |
Engine | Six cylinders in line,turbocharged |
Clutch | Sachs MF395 |
Gearbox | QJS6-150T,6 shifts |
Front Axle | NEOPLAN Independent Front Axle,disc brake |
Rear Axle | Local,Drum brake |
Suspension System | Front suspension: Independent air suspension 2 air bellows +2 shock absorbers Rear suspension: Neoplan A-type beam+2 air bellows+2 shock absorbers |
Steering System | power steering |
Braking System | Front disc brake and rear drum brake (automatic clearance adjustment) Double circuit air brake ABS system Retarder/Engine brake system |
Body + Interior Fitting+ Electrical System | |
Body structure | Germany Neoplan Technology Monocuque |
Doors | Aluminum, Pneumatic- controlled ,Front |
A/C | Dependent overhead air conditioner with the cooling capacity of ≥24000kcal/h |
Dashboard | Luxury Dashboard |
Electrical System | 24V |

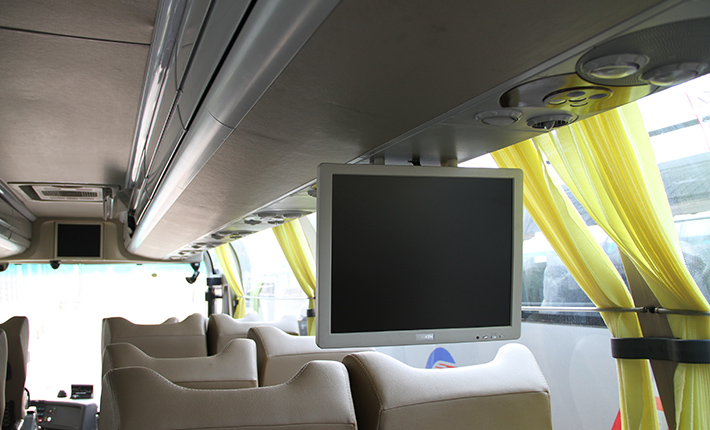

video system | Hard disc player+LCD |
