Technical Data
Enlarge your power,smooth your drive,pleasure your travel.
make your drive more Powerful and free of trouble.
Model | BFC6901 |
General Data | |
Dimension | 9120*2500*3440 |
Kerb Weight (kg) | 9500kg |
Gross Vehicle Weight (kg) | 12600kg |
Seat Capacity | 24-37+1+1 |
Fuel Tank Capacity (L) | 300L |
Driveline system | |
Engine | 245-279 Hp,Six cylinders in line turbocharged |
Clutch | Sachs MF395 |
Gearbox | QJ S6-100，6 shifts |
Front Axle | NEOPLAN Independent Front Axle,disc brake |
Rear Axle | Local,Drum brake |
Suspension System | Front suspension: Independent air suspension 2 air bellows +2 shock absorbers Rear suspension: Neoplan A-type beam+2 air bellows+2shock absorbers |
Steering System | power steering |
Braking System | Front disc brake and rear drum brake (automatic clearance adjustment) Double circuit air brake ABS system Engine brake for option |
Body + Interior Fitting+ Electrical System | |
Body structure | Germany Neoplan Technology Monocuque |
Doors | Aluminum, Pneumatic- controlled,Front |
A/C | Dependent overhead air conditioner with the cooling capacity of ≥20000kcal/h |

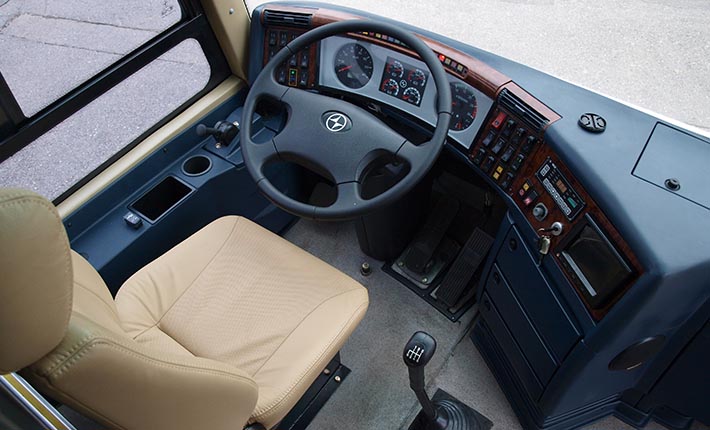

Dashboard | Luxury Dashboard |
Electrical System | 24V |
video system | Hard disc player+LCD |
