Technical Data
Enlarge your power,smooth your drive,load your safety,pleasure your travel.
Shifted by GO,Loaded by RO,make your drive more powerful,your shift more
smooth,and your load more strong.
Model | BFC 6123T |
General Data | |
Dimension | 11990*2550*3330 |
Kerb Weight (kg) | 12800kg |
Gross Vehicle Weight (kg) | 18000kg |
Seat Capacity | 53+1+1 |
Fuel Tank Capacity (L) | 400L |
Driveline system | |
Engine | Six cylinders in line,turbocharged |
Clutch | Sachs MF430 |
Gearbox | Mercedes Benz GO170-6,6 shifts |
Front Axle | I-beam Rigid Front Axle,disc brake |
Rear Axle | Local,drum brake |
Suspension System | Front suspension: Independent air suspension 2 air bellows +2 shock absorbers Rear suspension: Neoplan A-type beam+2 air bellows+2shock absorbers |
Steering System | power steering |
Braking System | Front disc brake and rear drum brake (automatic clearance adjustment) Double circuit air brake ABS system Retarder/Engine brake system |
Body + Interior Fitting+ Electrical System | |
Body structure | Germany Neoplan Technology Monocuque |
Doors | Aluminum, Pneumatic- controlled ,Front and middle |
A/C | Dependent overhead air conditioner with the cooling capacity of ≥30000kcal/h |

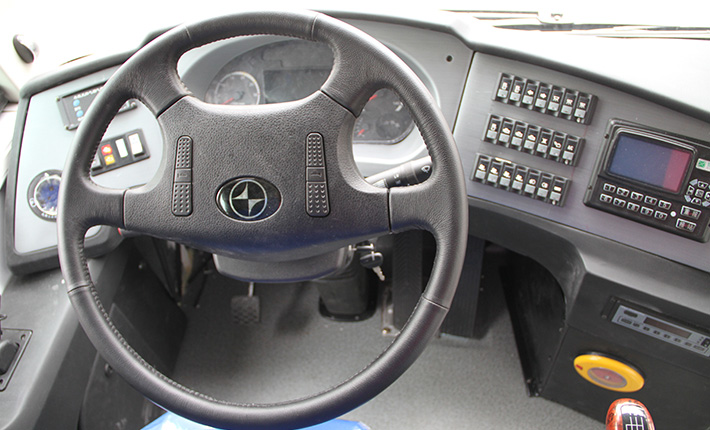

Dashboard | Luxury Dashboard |
Electrical System | 24V |
video system | Hard disc player+LCD |
