Technical Data
Powered by Mercedes Benz
Model | VIP Shuttle Bus |
General Data | |
Dimension | 8995*2500*3400 |
Kerb Weight (kg) | 9500kg |
Gross Vehicle Weight (kg) | 12600kg |

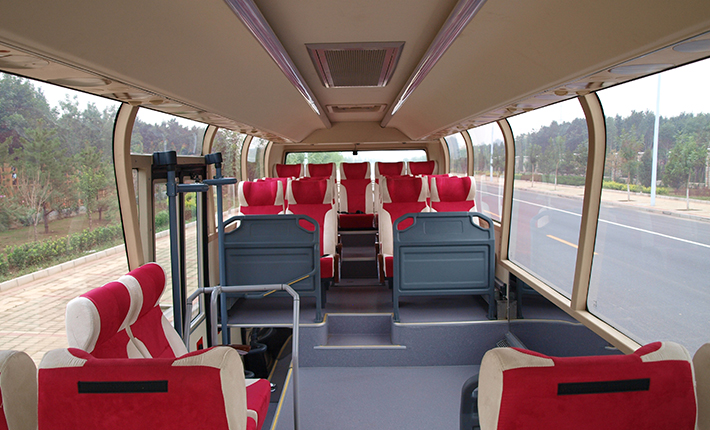

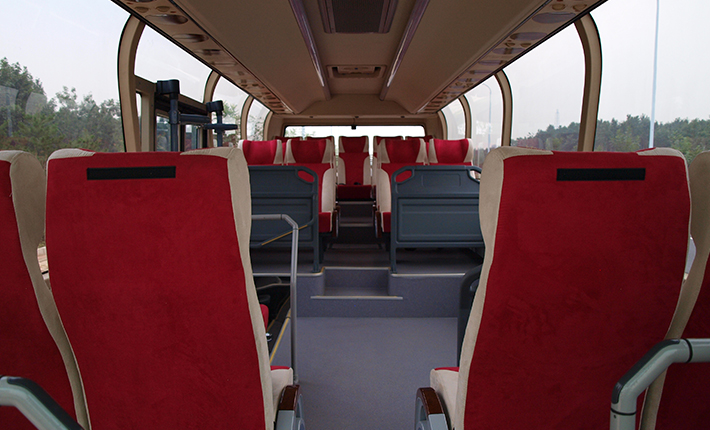

Seat Capacity | 24-30 VIP Seat |
Fuel Tank Capacity (L) | 300L |
Driveline system | |
Engine | Six cylinders in line，turbocharged |
Clutch | Sachs MF395 |
Gearbox | QJS6-100T,6 shifts |
Front Axle | NEOPLAN Independent Front Axle,disc brake |
Rear Axle | Local,Drum brake |
Suspension System | Front suspension: Independent air suspension 2 air bellows +2 shock absorbers Rear suspension: Neoplan A-type beam+2 air bellows+2shock absorbers |
Steering System | power steering |
Braking System | Front disc brake and rear drum brake (automatic clearance adjustment) ABS Engine brake for option |
Body + Interior Fitting+ Electrical System | |
Body structure | Germany Neoplan Technology Monocuque |

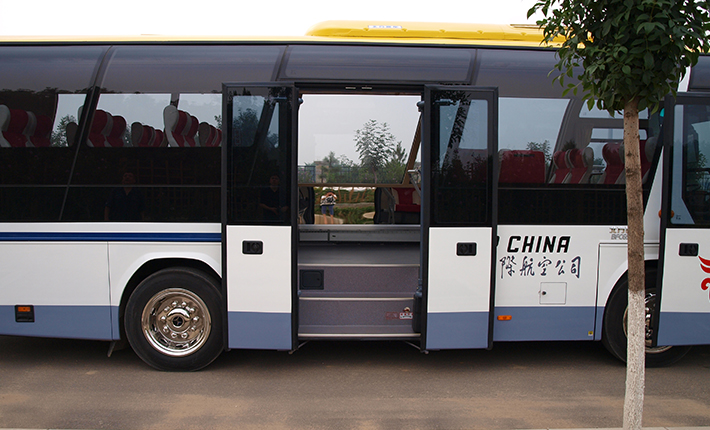

Doors | Aluminum, Pneumatic- controlled ,Front and middle |
A/C | Dependent overhead air conditioner with the cooling capacity of ≥24000kcal/h |

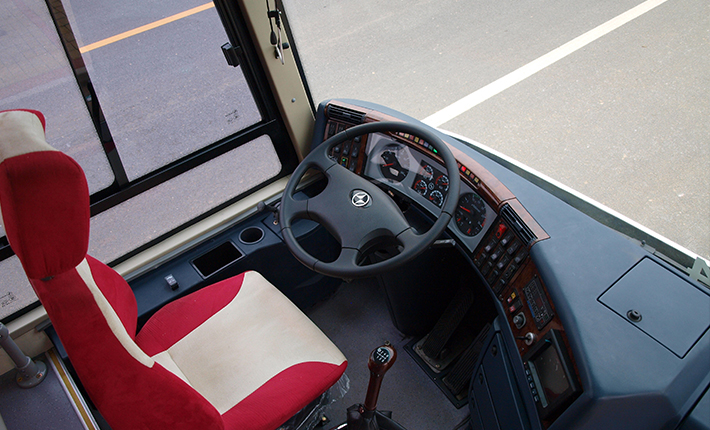

Dashboard | Luxury Dashboard |
Electrical System | 24V |
video system | Hard disc player+LCD |
